Line tracker tester

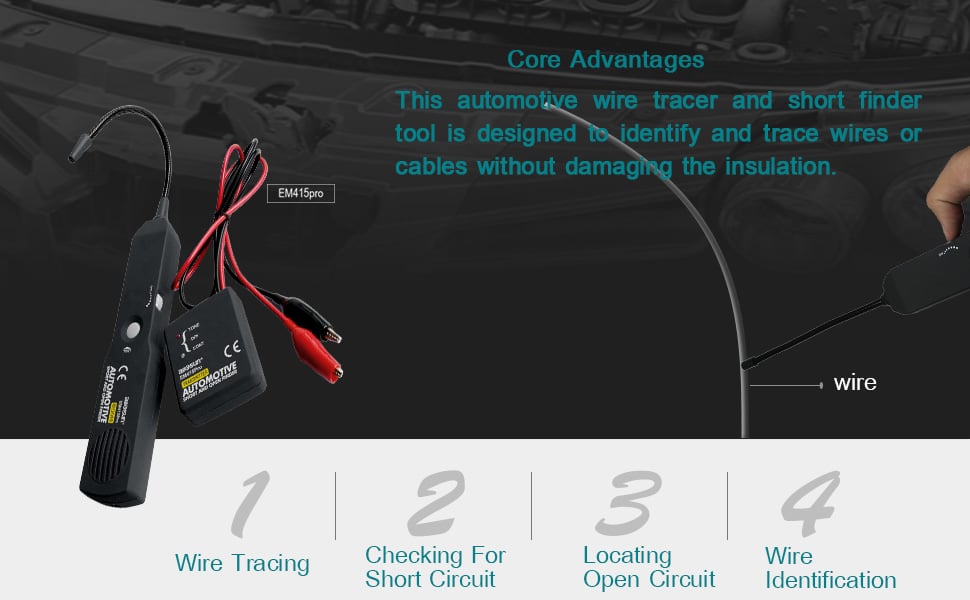

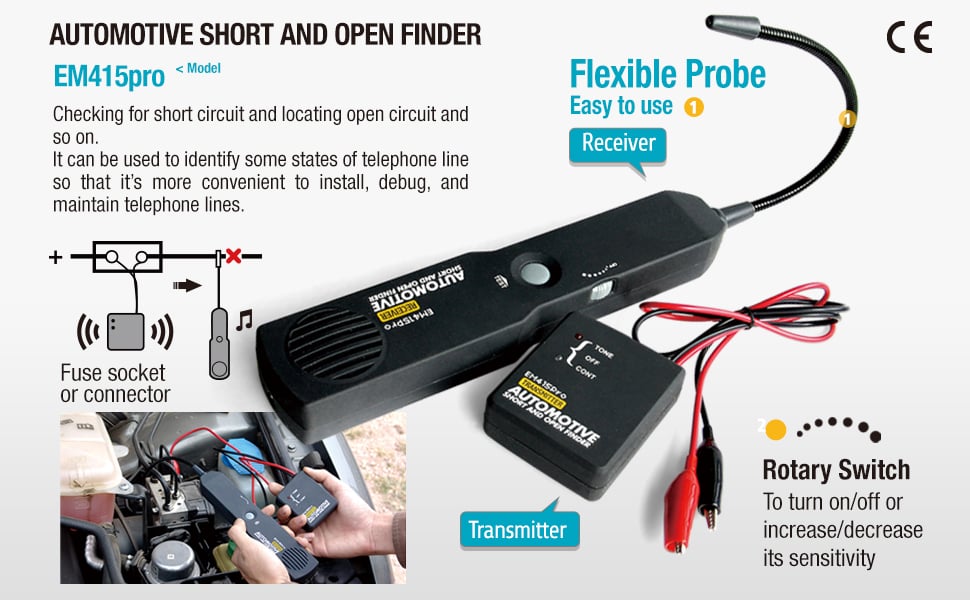

This Automotive Short and Open Finder, car repair tool is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuit and locating open circuit and so on. Included in the set are Sender and a Receiver with a flexible thus, tracing wires made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

Locating Open Circuit: Open Wire Detector, powered by 2pcs*9V Batteries. It detects and alerts you immediately where a circuit is open. You can quickly and easily Locate short circuits, open connections, broken wires, current leaks and even trace wires. Transmitter and receiver LEDs show open or short circuit conditions

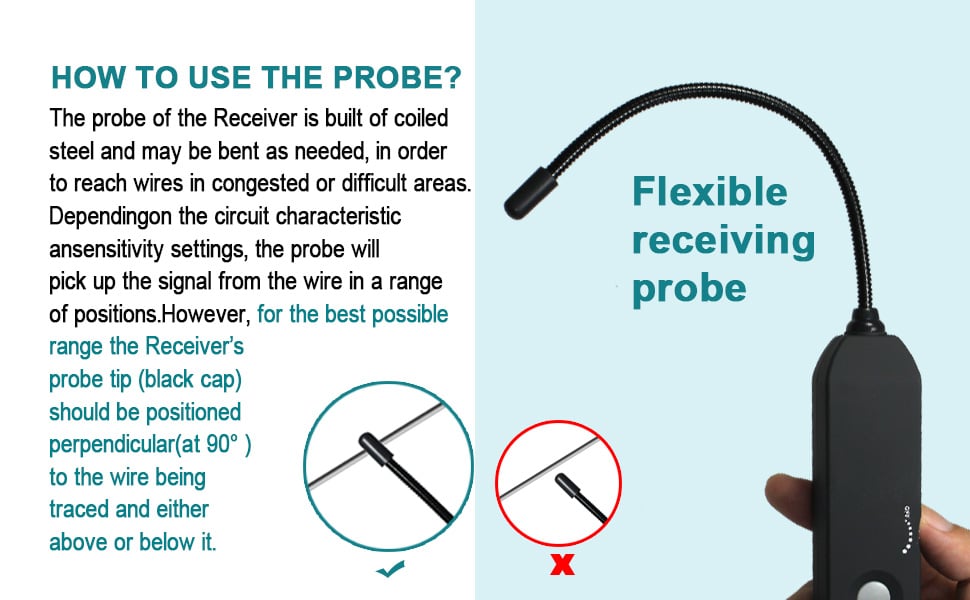

Checking Short Circuit: Short Circuit Finder Automotive,you can also find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone, 7 inch Flexible Probe Help Reaching Wires in Congested Places

Suitable For DC 6~42 Volt Circuit Power: Electrical Circuit Tracer will work on all kinds of circuits with voltages between 6 and 42 volt DC. (such as those found in automobiles,trucks,tractors,boats,RVs,etc...With its wide working voltage range)

Operation Video: Automotive Short Circuit Tester, Check Out Our VIDEO on the Left Side, Internally Protected Against Power Surges and Overloads. Built-in Buzzer Sound Show Open or Short Circuit Conditions, Comes with a storage bag, easy to carry

Quick And Easy Diagnostic: Auto Electrical Short Finder,Judge continuity of the cables or wires, and diagnose the break point. Time saver, making your repairs quicker, makes things easier to find troubles, Tried to find a fault in auto electric circuit

SPECIFICATIONS:

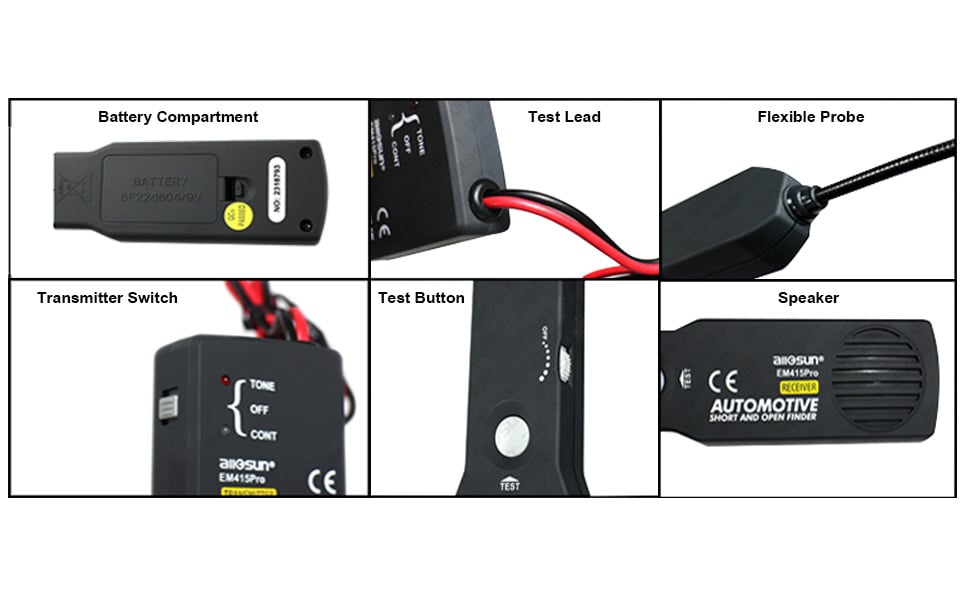

Receiver: On/Off button Test button

Probe length: 7 inch flexible probe

Sender: Tone/Off/Cont (Continuity) switch Tone/Cont (Continuity) LEDs Red and black test leads cable (61cm length, approximate)

Receiver Dimensions: 38.5 x 4 x 2.3cm (H x W x D, approximate)

Sender Dimensions: 6.5 x 5.6 x 2.1cm (H x W x D, approximate)

DC Voltage: Operates from 6 to 42 volts Power : 2x9V battery (6F22)

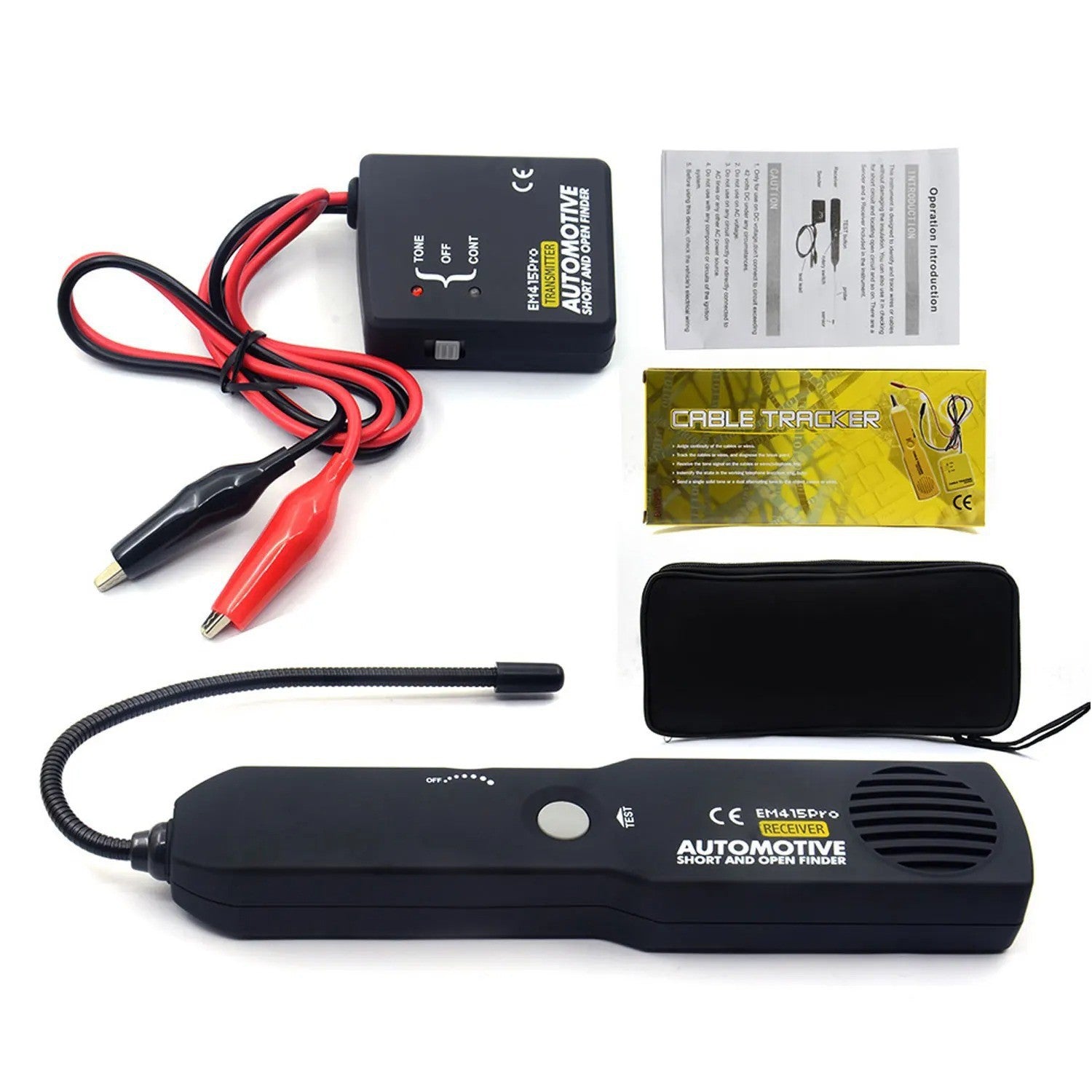

Please Note: This product set needs two batteries. Please install 9V 6F22 battery in both Receiver & Transmitter.
